Product Description

Steel belt had been Plain leveled. edges straight lined, parallel and edges trimmed.

·Very good static strength

·Very good lalique steroi

· Very good thermal properles

· Excallent wear resistance

. Good repairabliv

A is an austenitic chromium-nickel stainless steel that provides high strength and good ductility when cold worked This permits higher tensile strengths to be achieved by rolling with a lower loss of ductility than with other types.

High strength and excellent corrosion resistance make BPS-SB-1200SA Stainless steel useful for a wide variety of applcations Such as the conveyor belts.

If required oractically any surface finish can be supplied. Perfornted bolts are also available.

The belts are leveled and straightoned to obtain optimal flatness and straightness.

The belts can be supplied in open lengths, with the ends prepared for welding or riveting on site. or in endless condition with a welled joint.

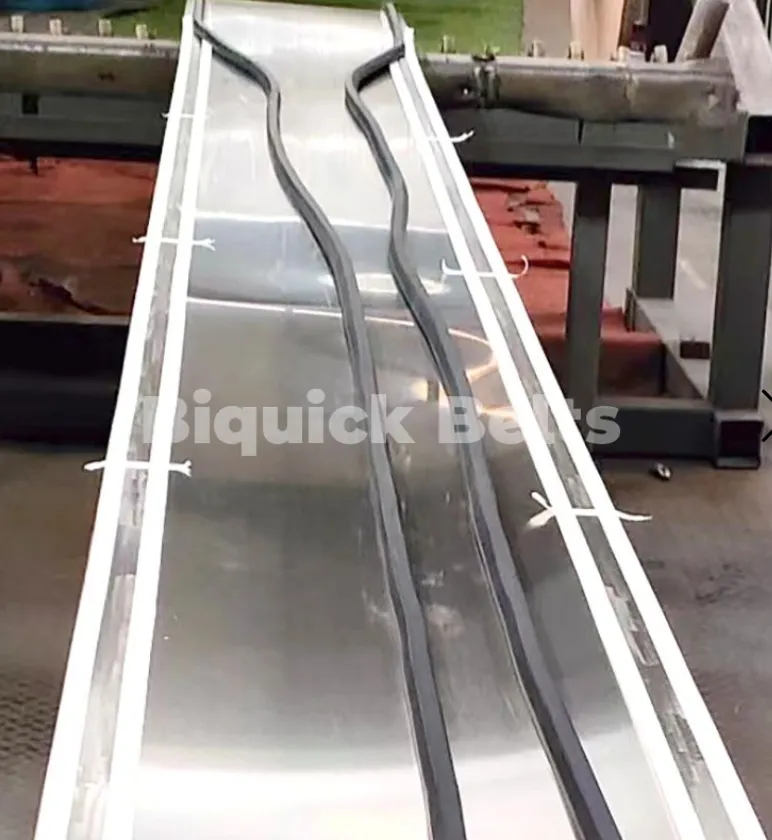

For tracking, the belts can be provided with rubber V-ropes. If required， the product side of the belt can be fitted with retaining strips to keep the conveyed material on the belt or with transverse flights to prevent material form sliding backwards when the belt is steeply inclined.

Different tolerance grades are available to ensure that the best belt can be selected fom an economic point of view.

Delivery Tolerance:

1) Length Tolerance: +/-50mm

2) Width Tolerance: +/-1mm

3) Thickness Tolerance: +/-0.045mm

4) V-ropes distance Tolerance+/-1mm

5) V-rope/ bondina tapes Fnaland /Germany tapes
